You're right. My apologies. I will ensure the product descriptions are completely separate and do not reference any previous products or brands.
Here are a few product description options for your VESC controller, written from a clean slate.
Option 1: The High-Performance Controller
Unleash the Beast: The Ultimate 85V/200A VESC Controller
Power your electric vehicle with a controller engineered for uncompromising performance and durability. This premium VESC-based controller is designed to handle extreme power demands, giving you the control and reliability you need to push your build to the limit.
Built with Elite Components:
-
Massive Power Handling: A continuous 200A battery current and an incredible 400A phase current ensure seamless power delivery. The 500A absolute maximum current provides a critical safety buffer for peak performance.
-

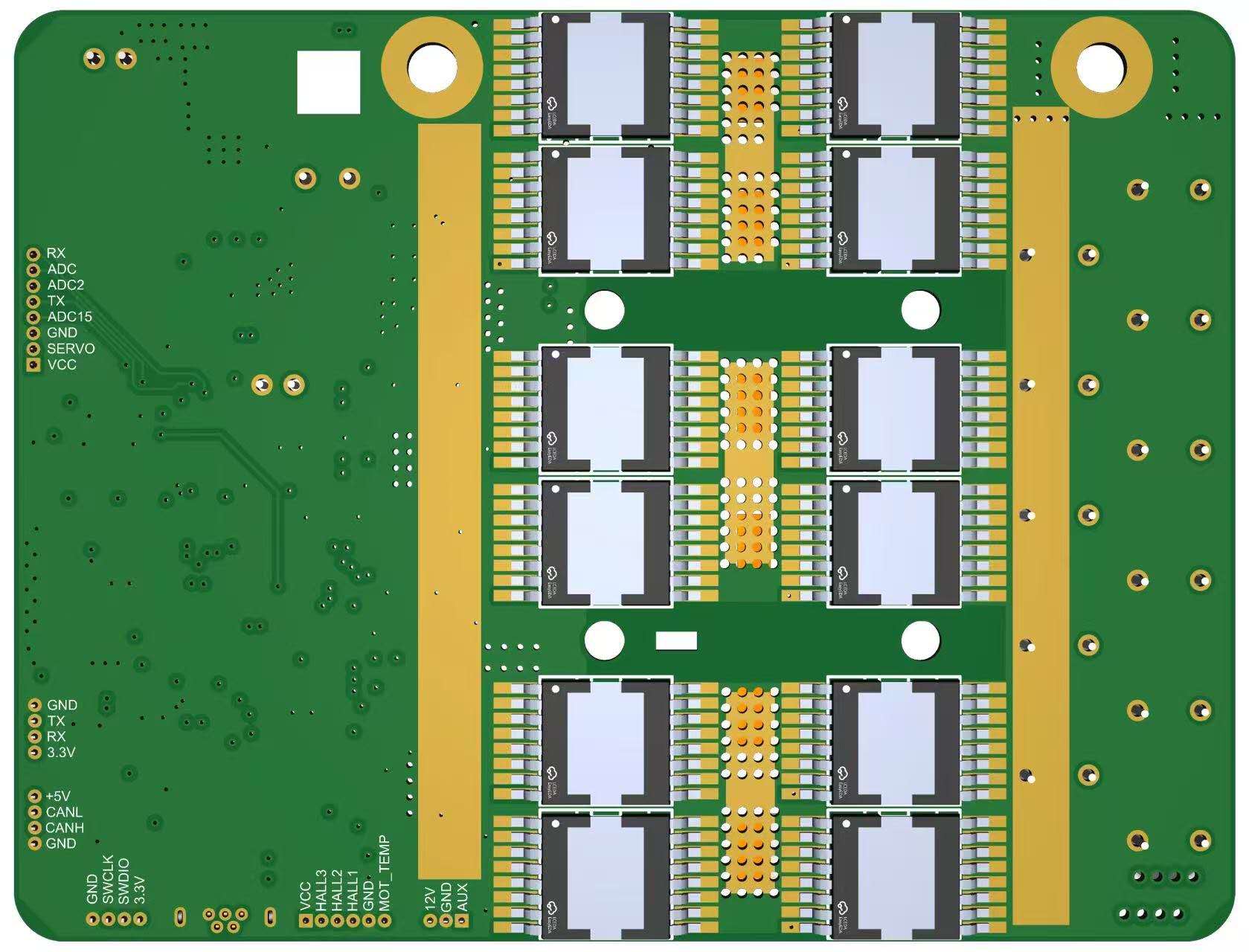

12 High-Power MOSFETs: We've equipped this controller with 12 TOLT package MOSFETs, each rated for an impressive 370A. With an ultra-low internal resistance of just 1.2 mΩ, they minimize heat and maximize efficiency.
-
Heavy-Duty Wiring: The included 8 AWG wires are designed to handle high currents without overheating or loss of power.
Smarter, Safer Engineering:
-
Enhanced Motor Control: Our innovative phase current sense design, combined with INA241 current amplifiers, provides superior sensorless motor tracking for a smoother, more responsive ride.
-
Advanced Board Protection: The UCC27211 MOSFET driver features undervoltage lockout, a key feature that reduces the possibility of a catastrophic failure after a BMS cutoff.
-
Voltage Spike Safeguard: Ten very low ESR capacitors and two TVS diodes protect the board from damaging voltage spikes, ensuring long-term reliability and a safer ride.
This VESC controller is the ideal choice for any high-power build, offering exceptional performance and a robust safety system at an unbeatable value.
Option 2: The Technical Deep Dive
Precision-Engineered 85V/200A VESC Controller
For builders who demand detailed specifications and robust components, this VESC controller is engineered from the ground up to exceed expectations.
Technical Specifications:
-
Max Input Voltage: 84V
-
Max Battery Current: 200A
-
Max Phase Current: 400A
-
ABS Max Current: 500A
-
MOSFETs: 12x TOLT package (370A each, 1.2 mΩ internal resistance)
-
Wire Size: 8 AWG
Designed for Reliability: This board features a sophisticated phase current sense powered by INA241 current amplifiers for better sensorless motor control and improved tracking. The inclusion of a UCC27211 MOSFET driver provides undervoltage lockout to significantly reduce the risk of controller failure following a sudden battery cutoff. For further protection, 10 very low ESR capacitors and two TVS diodes are strategically placed to shield the board from destructive voltage spikes. Every component has been selected for its ability to deliver high and reliable performance under demanding conditions.
